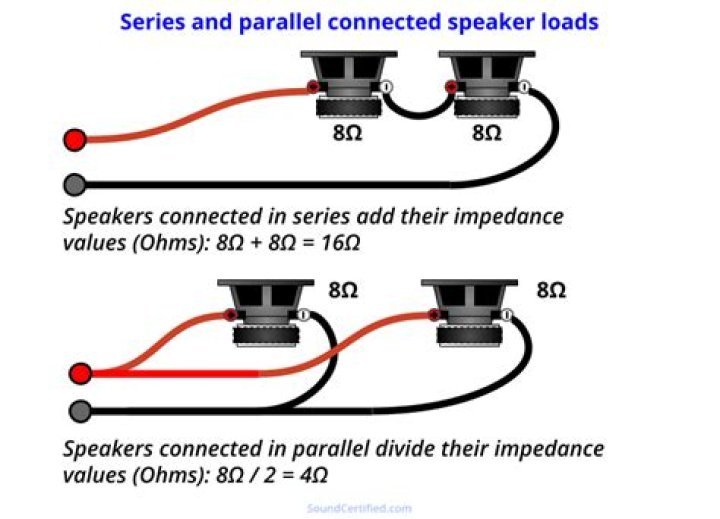

Can I connect speakers in series?

When using more than one speaker with your amp the equivalent overall impedance changes depending on how the speakers are wired. You can wire multiple speakers “in series,” “in parallel” or in a combination of the two wiring configurations (“series/parallel”).

How do I connect two auxiliary speakers?

Get both the speakers and turn the power on both devices. Insert the other ends of the two AUX cord to the 3.5mm jack in each speaker. Pair your phone with the Bluetooth receiver. Now, you can control both speakers with one device.

Can you connect to 2 Bluetooth devices at the same time?

Android users need to go to Bluetooth Settings and pair either Bluetooth headphones or speakers one by one. Once connected, tap the three-dot icon on the right and click on Advanced Settings. Toggle on the ‘dual audio’ option if not already turned on. This should enable users to connect to two devices at once.

Can you pair 3 Google Minis?

In case you are wondering, “Can I connect two Google Home devices?” the answer is yes. You can sync up multiple Google Home devices by creating a group. With all devices under a single group, it is possible to give Google Assistant a command to the group as you would a single speaker.

Can I play music on two Google homes at once?

If you have more than one Google Home speaker in your home, you can play music on multiple speakers simultaneously. To do this, you must create an audio group. With a group created, to play music through all audio devices in that group, say, “OK Google, play Taking Back Sunday on [group name].”

Can I plug an 8-ohm amp into a 16 ohm speaker?

How can you use 16 Ohm speakers with an 8 Ohm amplifier? You can just connect them, the same way you would if they matched. The only difference is they would not provide the full power the amplifier was designed for, by about 3db.

How many 4 ohm speakers do I Need?

Wiring Configuration for 2 Speakers in Parallel. Two 4 ohm speakers = 2 ohm load. Two 8 ohm speakers = 4 ohm load. Two 16 ohm speakers = 8 ohm load. Wiring Configuration for 2 Speakers in Series. Two 2 ohm speakers = 4 ohm load. Two 4 ohm speakers = 8 ohm load. Two 8 ohm speakers = 16 ohm load. Wiring Configuration for 4 Speakers in Parallel.

Can you connect two amplifiers to one speaker?

Hello,i have one Yamaha 470 and Marantz SR7500 and 1 pair of JBL ES90. Is it possibly safe to connect both amps to the speaker? Of course, only 1 amp should be turned on at a time. Your input is highly appreciated. -ATM No, you can’t do it that way. You would need a disconnect switch to disable the output connections one amp at a time.

How are the speakers in a multi speaker system wired together?

Can you use one amp with the other off?

You can’t use one amp with the other connected, even if it’s off. The Yamaha 470 is a piece of crap anyway. To slightly clarify soundguruman — the problem is that unless the (theoretical) switch can isolate the amp which is not being used the amp that is being used will be looking into its output section.

How can I connect two portable speakers with an aux adapter?

Larry Baltz, 30+ years designing, selling and installing A/V systems. As long as these are powered monaural speakers with an aux input you can use the adapter below to give you separate left and right outputs from your phone: Then use two 3.5mm to 3.5mm mono cables between the adapter outputs to the speakers. Like these:

How many ohms does it take to connect two speakers?

So, assuming you have 8 ohm speakers, connecting any 2 of them in parallel would lead to a 4 ohm load. Keeping in mind that the impedence of your speakers flucuates across the frequency spectrum (above or below 8 ohms) the overall impedence could at times be closer to 2 ohms.

How can I connect two speakers to one woofer?

In essence, wiring the left channel of one of the main speakers along with the left channel of the woofer, into the same channel connection of the receiver, and the same with the right. I figure impedance would be (8 ohms from main speaker + 1/2 of 8 ohms of woofer) 6 ohms (?) per channel.

Can you connect two speakers to a 5.1 HT receiver?

Very little that applies to a two channel stereo receiver transfers easily to a 5.1 HT receiver when multi-room speakers installations are desired.) In other words, with a two channel system, when only speaker “A” is engaged, the amplifier sees a load which represents one pair of speakers.
