How do I connect my Bose equalizer?
How do I connect my Bose equalizer?

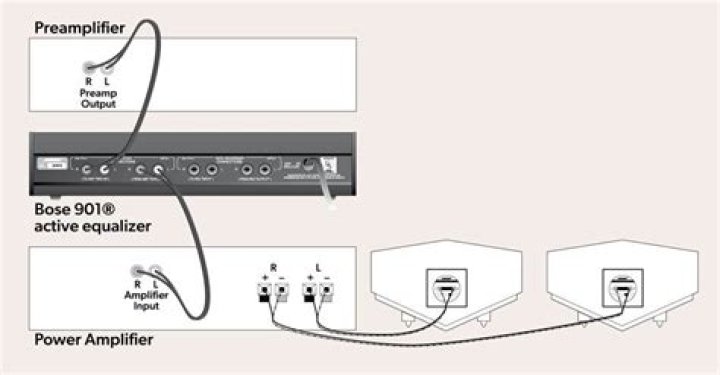

Connect the amplifier INPUT of the Bose® 901® active equalizer to the PRE AMP OUT jacks of the receiver or amplifier. Connect right channel to right channel and left to left. 4. Connect the amplifier OUTPUT of the active equalizer to the MAIN AMP IN jacks on the receiver or amplifier.
How do you connect two equalizers?
Connect one pair of RCA cables between the receiver and equalizer. Connect one pair of cables to the tape monitor output channels on the receiver and the other end of the cable to the left and right channel inputs on the equalizer. You will usually find these channels on the rear of the equalizer.
Can you use Bose 901 without the equalizer?
You can use the Bose without the EQ but they won’t sound as they are supposed to. If you can’t find the Bose EQ for your series 901 then get any graphic equalizer and adjust the sound to your taste. Add bass from about 60hz down. Add high frequencies to taste.
Where is the Bose 901 active equalizer located?
The 901 active equalizer is most commonly connected to the tape monitor connections on the receiver. If you plan to connect a tape recorder, use the set of inputs and outputs located on the back of the 901 active equalizer marked TAPE RECORDER CONNECTIONS.
How does Bose Series VI active equalizer work?
Bose®901®Series VI speakers and Series VI active equalizer work with your stereo components to produce a superb music system. The active equalizer is an integral part of the system and may be connected in a variety of ways, depending on the components you have. The two most common methods are described in this guide.
Is the 901 active equalizer connected to the tape monitor?
Most receivers have a TAPE MONITOR connection. The 901 active equalizer is most commonly connected to the tape monitor connections on the receiver. If you plan to connect a tape recorder, use the set of inputs and outputs located on the back of the 901 active equalizer marked TAPE RECORDER CONNECTIONS.
Where do you put the tape monitor on a Bose?
Place the TAPE switch On the Equalizer to the NORMAL position. Place the three frequency contour con- trols so they coincide with the indicated dots. These are the positions Of the Equalizer controls. Place the TAPE MONITOR or TAPE FUNCTION switch on your preamplifier to the NORMAL or OUT position.
The 901 active equalizer is most commonly connected to the tape monitor connections on the receiver. If you plan to connect a tape recorder, use the set of inputs and outputs located on the back of the 901 active equalizer marked TAPE RECORDER CONNECTIONS.
How do you connect a Bose equalizer to an amplifier?
If you’re using the equalizer in a home theater setup, connect this end of the cable to the “Main Amp In” jacks on your receiver or amplifier. Connect the Bose 901 equalizer’s power cord to one of the switched power outlets on your receiver or amplifier.
Most receivers have a TAPE MONITOR connection. The 901 active equalizer is most commonly connected to the tape monitor connections on the receiver. If you plan to connect a tape recorder, use the set of inputs and outputs located on the back of the 901 active equalizer marked TAPE RECORDER CONNECTIONS.
Bose®901®Series VI speakers and Series VI active equalizer work with your stereo components to produce a superb music system. The active equalizer is an integral part of the system and may be connected in a variety of ways, depending on the components you have. The two most common methods are described in this guide.
