How do you hook up a graphic equalizer to a home stereo receiver?
How do you hook up a graphic equalizer to a home stereo receiver?
Plug a pair of RCA audio cables into the input sockets on the rear of the graphic equalizer. Connect the other end to the “Tape Monitor” outputs on the rear of the receiver. Connect a second pair of audio cables to the “Tape Monitor” inputs on the rear panel of the receiver.

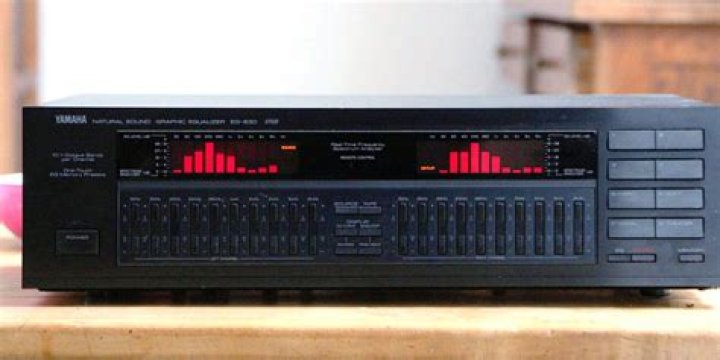

How do I connect my Yamaha equalizer to my receiver?
To connect an equalizer to any of the Yamaha receivers listed below, you would first connect the Line-Out (Rec Out) of your equalizer to the Main-In of your receiver. Now, connect the Line-In (Tape PB) of your equalizer to the Pre-Out of your Yamaha AV receiver, which will complete the connection.
How do you hook up a turntable to an equalizer?
How to Hook Up an Equalizer to a Turntable
- Connect one stereo cable from the two jacks on the back of the turntable to the two jacks typically labeled “Phono” on the amplifier.
- Hook up a second stereo cable from the EQ’s output jacks to the tape monitor inputs on the amplifier.
How to hook up a graphic equalizer to a receiver without?
Make sure to pick up a brand that can handle the power your receiver outputs. Hope this helps someone in need… Done assuming you have an external power amp (the EQ also has a power amp) since I’d guess a receiver without preamp outputs does not have preamp inputs to take the output from the graphic equalizer and send it to the power amps…
How do you hook up an equalizer to a dash?
Connect the RCA cables to your in-dash receiver. Plug the two RCA cables into the receiver’s preamp outputs. Tape them together so they will not come apart. Bring the cables to the equalizer and plug in. Route the cables through the dash to the equalizer. You should use tape or wire ties along the way to connect the two cables together.
What kind of wire do you need for an equalizer?
Connect the remote turn-on wire. This wire will usually be a blue wire with a white stripe, and should be labeled on your equalizer. On the receiver should be a blue (usually blue but can be other colors) wire that goes to the amplifier.
Where do I plug in my equalizer cable?
Connect one pair of cables to the pre-amp output channels on the receiver and the other end of the cable to the left and right channel inputs on the equalizer. You will usually find these channels on the rear of the equalizer. Right channel jacks will usually take the red colored RCA plug while left channel should take white or black RCA plugs.
