What is a bad reading for continuity?

What is a bad reading for continuity?

If you have a reading higher than 10 ohms, you have poor continuity. The resistance is higher than it should be and you need to replace the wire, fuse, outlet, battery, or device. If the reading is higher than 10, then your device, wire, appliance, or fuse will overheat.

How do you check continuity from a long distance wire?

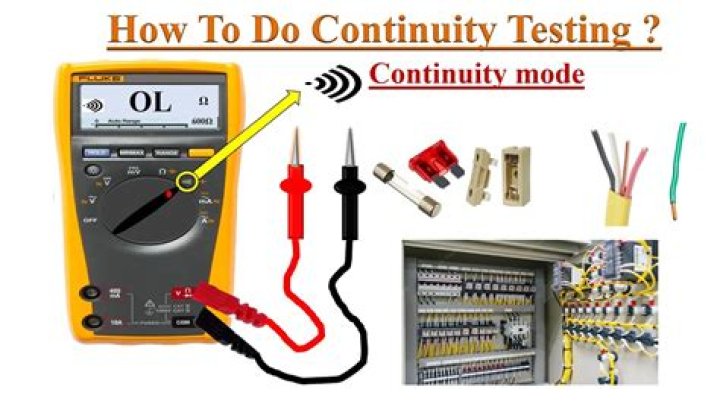

To check continuity in a long wire, follow the steps below:

1. Disconnect both ends of the long wire.
2. Get a multimeter and set it to the lowest resistance with a tone.
3. Put a meter lead on either end of the wire.
4. If the multimeter emits a tone and has almost no resistance, you have a continuous wire.

Can an ohm meter check continuity?

Continuity means, are two things electrically connected. So if two electronic parts are connected with a wire, they are continuous. You can always use a resistance-tester (ohmmeter) to figure out if something is connected because the resistance of wires is very small, less than 100 ohms, usually.

What is the difference between continuity and resistance?

Think of it this way: Continuity is a binary version of resistance. If the resistance of the thing we’re testing—the wire we want to make sure isn’t broken, the connection we want to be certain actually goes to ground, the switch we want to know works—is low (like less than 1 ohm), we say that it has continuity.

How do you test for earth continuity?

The traditional method applied to this test is to plug the electrical appliance into a PAT tester and to clip the test lead to an accessible earth point on the appliance. The earth continuity test passes a test current along the earth cable from the pin of the plug to the contact point on the appliance.

What is the maximum resistance allowed for continuity?

The level of resistance needed to trigger the beeper varies by meter, but most will indicate continuity with a measurement between 0-50 ohms.

Can you test continuity on a live circuit?

You can measure the voltage and the current of a live circuit and use those figures to calculate the resistance (Ohm’s Law), but you can’t actually measure the resistance of a live circuit. Continuity testing is the act of testing the resistance between two points.

What happens if there is no continuity in the test?

On the other hand, if one is expecting no continuity, this is a short circuit… all too good a short circuit, at that! Note that the lightbulb is brightly lit up, though less so than for the short circuit condition above. The meter is displaying 2.3 ohms.

When to treat a ground loop as no continuity?

Ground loops may still be a problem, though less likely to have severe effects, with this, or greater, resistance. If your meter is capable of reading resistances higher than 10.0 Megohms, and you see such numbers, those may almost always be treated as “no continuity” for ground loops, and most other common purposes.

What should the reading be for a continuity tester?

For almost every common household purpose, any reading less than 1.0 ohms is sufficiently low to be considered excellent conductivity. This is what one hopes to find in electrical power wiring. On the other hand, if one is expecting no continuity, this is a short circuit… all too good a short circuit, at that!

What is the resistance of a continuity meter?

The meter is displaying 1599 ohms, almost 1600 ohms, or 1.6kΩ. This is a middle-range resistance value in general electronics, and far higher than what is normally found in electrical power systems. There is still plenty of continuity for a ground loop to have ill effects. Little Continuity – high resistance The lightbulb is not lit.
