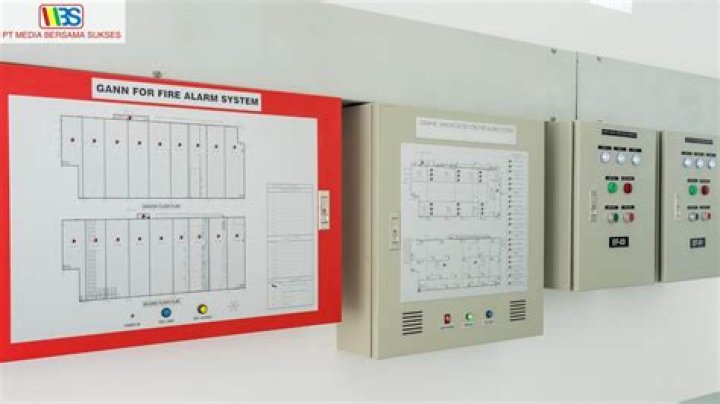

What work space clearance is required by the NEC in front of a fire alarm control panel?
What work space clearance is required by the NEC in front of a fire alarm control panel?
A: According to NFPA 70-2011, article 110.26, a minimum of 36 inches clearance is required in front of all electrical equipment, including controls and panels, extending from the floor to a height of 6 foot 6 inches or the height of the equipment whichever is higher.
What is the width of the working space required in front of electrical equipment NEC?
750mm
2. Width of Working Space. The width of the working space in front of the electrical equipment shall be the width of the equipment or 750mm (30 in.), whichever is greater. In all cases, the work space shall permit at least a 90 degree opening of equipment doors or hinged panels.
What is the minimum working space width required at the service panel?
30 inches
The width of the working space must be at least 30 inches, or the width of the panel, whichever is greater. However, the panel is not required to be centered on the working space, it could be offset to one side or the other. But, the width of the working space must allow for the panel door to open at least 90 degrees.
What is the minimum height of working space?
The height of the workspace in front of equipment must be no less than 6 1/2 ft, measured from the grade, floor, or platform. This pertains to service equipment, switchboards, and motor control equipment [110.26(E)].
What is the minimum size service entrance conductor for a 200 amp service?
| SERVICE ENTRANCE CONDUCTORS SIZE AND RATING | ||
|---|---|---|
| Service or Feeder Rating | Copper Conductors | Minimum Conduit Size |
| 125 Amps | #2 AWG | 1 ¼ inch |
| 150 Amps | #1 AWG | 1 ¼ inch |
| 200 Amps | #2/0 AWG | 1 ½ inch |
What is the code required clearance in front of an electric panel?
What is the code required clearance in front of an electric panel? Thursday, May 9, 2019 The National Electrical Code [NEC 110.26 (A) (1&2)] requires a clear area for access and working in front of an electric panel that is 2.5 feet (30”) wide, 3 feet (36”) deep, and 6.5 feet (78”) high for a regular residential 120/240-volt panel.
What are the NEC requirements for breaker panels?
Here are some of the standard requirements for breaker panels when being installed, many of which fall directly under NEC code: Working space: To ensure safe access and no interference, the area in and around the breaker panel must not have any other major installations present.
What is the code required clearance in front of an…?
Also, storage is not allowed in the required working space, per NEC 110.26 (B), the panel door must swing open a minimum of 90º, per NEC 110.26 (A) (2), a panel cannot be located in a clothes closet, bathroom, or on stairs, per NEC 240.24 (D,E,F), and the area in front of the panel must be illuminated, per 110.26 (D).
What are the NEC requirements for working space?
Section 110.26 in the 2020 NEC is entitled Spaces About Electrical Equipment and outlines the three areas of working space discussed in this article. These include: the depth of the working space at 110.26 (A) (1); the width of the working space at 110.26 (A) (2); and the height of the working space at 110.26 (A) (3).
What are NEC requirements?
The National Electrical Code (NEC) requires that all normally non-current-carrying metallic objects in a given structure be bonded together to form a single common system that is at the same potential.
What is required by NEC?
The NEC requires that conductors of a circuit must be inside a raceway, cable, trench, cord, or cable tray . Additional protection such as NM cable inside raceway is needed if the installation method is subjected to physical damage as determined by the authority having jurisdiction.
What is the NEC height requirement for an electrical pannel?
The National Electrical Code [NEC 110.26 (A) (1&2)] requires a clear area for access and working in front of an electric panel that is 2.5 feet (30″) wide, 3 feet (36″) deep, and 6.5 feet (78″) high for a regular residential 120/240-volt panel.
What are electrical panel clearance requirements?
All electrical panels must have a minimum of 36 inches of clearance in front of the panel, 30 inches of clearance across the face of the panel, and a minimum of 78 inches above the floor.
